HP Project Moonshot: Low-Power Chips To Increase Density

HP is now selling its first software-defined servers, Project Moonshot systems, using Intel's Atom 1260 processor found in cell phones. With greatly increased density, Moonshot uses less energy, less space and reduces complexity and cost.

Jason Verge

April 8, 2013

3 Min Read
HP Project Moonshot: Low-Power Chips To Increase Density


HP is now selling its first Project Moonshot systems--the bleeding edge of servers--which HP states is "the world's first software-defined server to run Internet scale applications." Also, Moonshot 1500 is using a low-power processor--specifically Intel's Atom 1260 processor found in cell phones--that uses less energy, less space and reduces complexity and cost.

There's been an overall movement toward ultra-low power servers, and Project Moonshot is HP's attempt. HP clearly sees an opportunity in building low-power, many-core servers, which can slash power usage over large footprints of Internet infrastructure.

As CEO Meg Whitman said, "We're living in a period of enormous change. There will be hundreds of billions of devices going to be connected." As the IT world enters the era of the Internet of Things where every device and appliance is connected, creating and storing data, an increasing demand for compute is evolving. " It’s no longer about petabytes, but brontobytes," said Whitman. "And all of this takes a lot of elements in the background. We’re on a path that is not sustainable from a space, cost, and energy perspective."

Converged Infrastructure

The Moonshot 1500 platform uses a converged infrastructure, using workload-optimized, extreme low-energy “server cartridges” in a unique enclosure that pools resources across thousands of servers through using HP Converged Infrastructure technology. This allows the sharing of resources—including storage, networking, management, power and cooling.

The HP Moonshot 1500 System chassis is similar to a blade chassis, but on steroids. It is a 4.3U (7.5 inches tall) chassis that hosts 45 independent hot-plug ProLiant Servers, all attached to multiple fabrics.

One moonshot system can get 180 servers in the system, including built-in switches. High-speed uplinks connect all the servers, with 10 terabits per second of I/O. One rack of Moonshots can replace 8 of traditional 1u 2p servers. It uses 89 percent less energy, 80 percent less space, 97 percent less complexity, which leads to 77 percent less cost.

While the first Moonshot version on the market uses Intel processors, additional servers shipping later in 2013 will take chips from multiple partners such as AMD, Calxeda, Applied Micro and Texas instruments.

Project Moonshot represents a new class of server designed to run Internet-scale workloads, and target specific workloads such as those that support gaming, genomics, telecom, video analysis and more.

Client-server infrastructure was not designed to handle the level of computing that Internet-scale organizations are running, according to HP, and that the economics behind social, mobile, cloud and big data will deteriorate.

The company also announced the Pathfinder Innovation Ecosystem: a program focusing on servers for different workloads. There are Internet-scale organizations today operating over one million servers. Additionally, many enterprises in finance have tens of thousands of servers. HP sees the opportunity to market a solution that meets the needs of these kinds of businesses. HP working on how to move large enterprises from a general purpose server, and move to a new era of software-defined server. The future is all about the software-defined server, according to HP. These are servers, which are specifically designed for different workloads and they’re looking to power a range of applications.

HP first revealed it was building such low-power machines in the fall 2011.

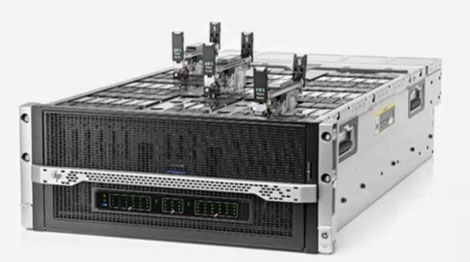

Close up of Moonshot 1500 from HP. The company today rolled out the units which use low-power processors.
